B R O O K F I

E L D E N G I N E E R I N G L A B O R ATORIES, INC.

11 Commerce Boule v a r d • M i d d l e b o r o , M A 0 2 3 4 6 U S A

ISO9001 CERTIFIED

T E L 5 0 8 - 9 4 6 - 6 2 0 0 o r 8 0 0 - 6 2 8 - 8 1 3 9 F A X 5 0 8 - 9 4 6 - 6 2 6 2

w w w . b r o o k f i e l d e n g i n e e r i n g . c o m

Boston • Chicago • London • Stuttgart • Guangzhou

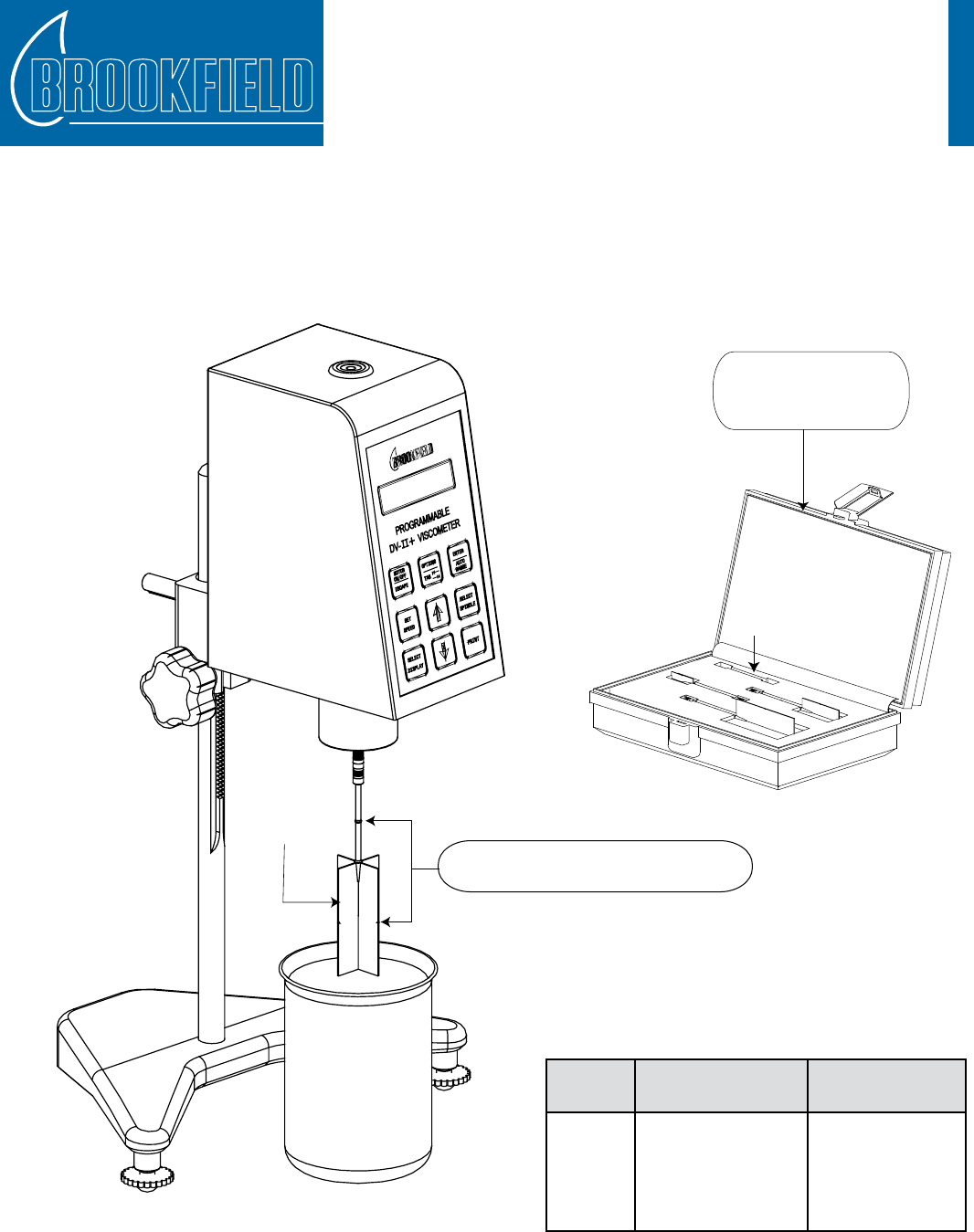

Vane Spindles

Assembly & Operating Instructions

Manual No. M02-290-C0809

Primary Immersion Mark

Secondary Immersion Mark

Vane

Spindle

Choose the immersion mark which best suits

the size of container for your sample material.

Vane Spindle Set

includes 3 vane spindles

and storage case

Part No. SSVANE

(empty slot)

Vane spindles can be used with any standard Brookeld Viscometer/Rheometer. V-71, V-72, and V-73 are

supplied in the Vane Spindle Set (Part No. SSVANE). The V-74 and V-75 spindles are optional extras. The

small size of the V-74 vane spindle is ideal for testing small sample sizes and tting into sample containers

with small openings. However, limited surface area for spindle measurement geometry may make it more

challenging to obtain repeatable shear stress and viscosity values.

Table 1 - Vane Spindle Dimensions

Spindle

Vane Length

inches cm

Vane Diameter

inches cm

V-71 2.708 6.878 1.354 3.439

V-72 1.708 4.338 .853 2.167

V-73 .998 2.535 .499 1.267

V-74 .463 1.176 .232 .589

V-75 .632 1.61 .316 .803

Note: Sample container diameter should be at least twice (2x) the vane

diameter when possible. Sample container depth should provide

clearance, at the bottom, greater than or equal to vane spindle

diameter when possible.

1 2

Summary of Contents

Page 1 - Vane Spindles

B R O O K F IE L D E N G I N E E R I N G L A B O R ATORIES, INC.11 Commerce Boule v a r d • M i d d l e b o r o , M A 0 2 3 4 6 U S AI

Page 2 - Spindle Range Data

Viscometer OperationAttach the Vane Spindle to your Viscometer as shown in the illustration on page one (Note: spindles have a left-hand thread for in
